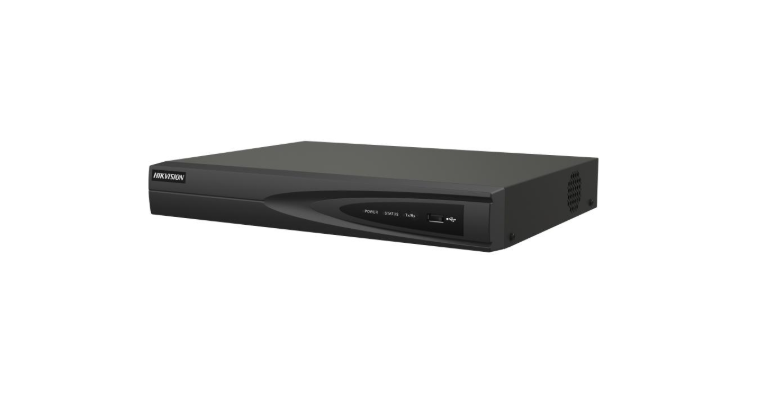

HIK NVR 4CH POE 4K Capacidad 1 HDD 40Mbps H265+

Descripción

• Detección de movimiento 2.0
• Human/Vehicle Analysis1-ch;4-ch

• Video and Audio
• Entrada de vídeo IP4-ch
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz ,HDMI/VGA simultaneous output,
• VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;,HDMI/VGA simultaneous output,
• Video Output ModeHDMI/VGA simultaneous output
• Salida de audio1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Recording
• Stream TypeVideo, Video & Audio
• Compresión de audioG.711ulaw/G.711alaw/G.722/G.726

• Descodificación
• Formato de decodificaciónH.265+,H.265,H.264+,H.264
• Resolución de grabación8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Decodificación1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
• Reproducción síncrona4-ch

• Red
• Conexión remota32
• Protocolo de redTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Interfaz de red1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE
• Interfaz4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• alimentación≤ 50 W
• EstándarIEEE 802.3 af/at

• Auxiliary Interface
• SATA1 SATA interface
• CapacidadUp to 8 TB capacity for each disk
• Interfaz USB2 × USB 2.0
• Alarma E/SN/A (4/1 is optional)

• General
• Fuente de alimentación48 VDC, 1.35 A
• Consumo≤ 10 W (without HDD, and PoE off)
• Temperatura de trabajo-10 to +55º C (+14 to +131º F)
• Condiciones de Humedad10% to 90%
• Dimensión (W × D × H)320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
• ≤ 1 kg (without HDD, 2.2 lb.)
